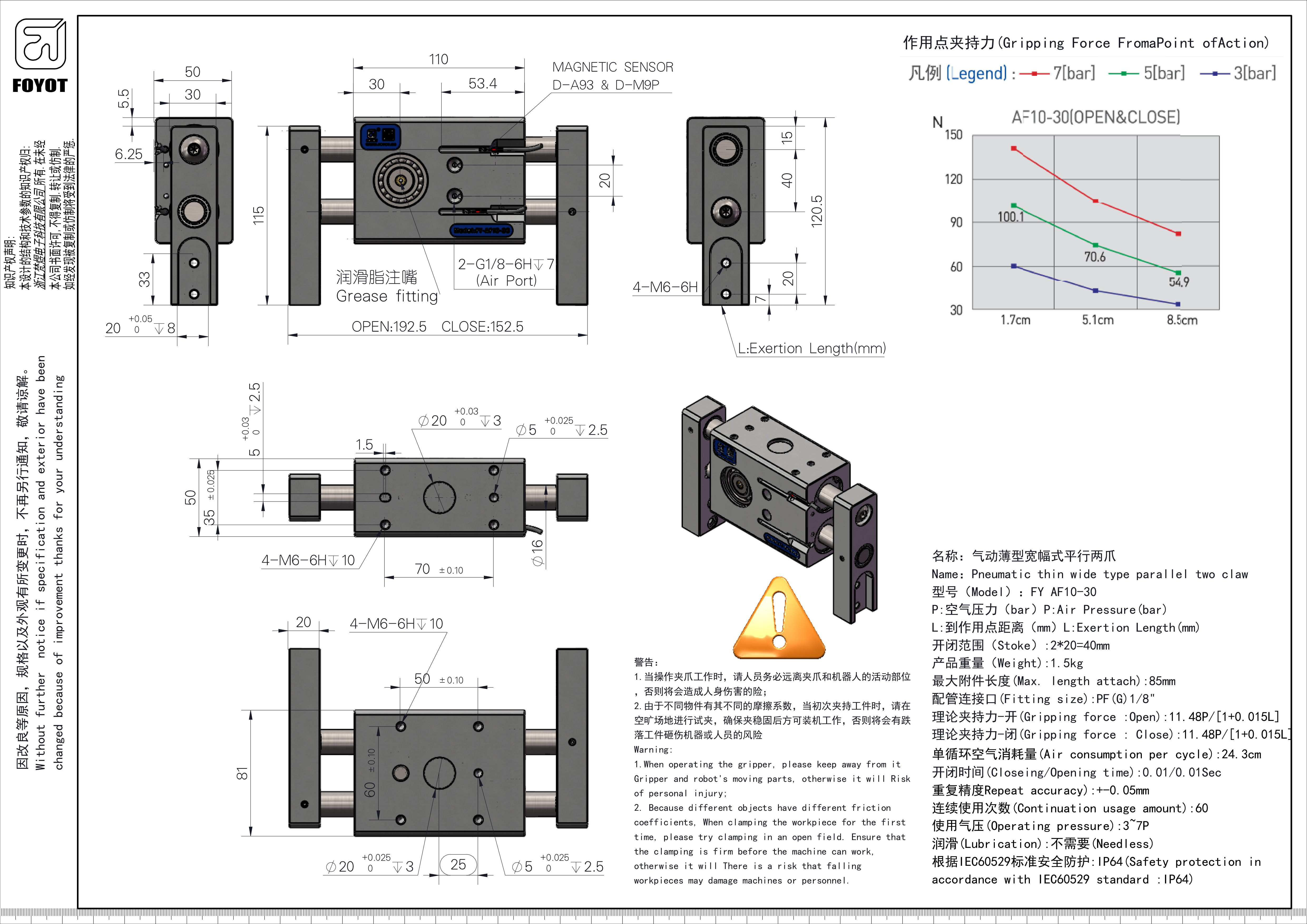

名稱：氣動薄型寬幅式平行兩爪

Name:Pneumatic thin wide type parallel two claw

型號(Mode I):FYAF10-30

P:空氣壓力P:Air Pressure(bar)

L:到作用點距離L:Exertion Length(mm

開閉范圍(Stoke):2*20=40mm

產品重量(Weight):1.5kg

最大附件長度(Max.length attach):85mm

配管連接口(Fitting size):PF(G)1/8"

理論夾持力-開(Gripping force:0pen):11.48P/[1+0.015L]

理論夾持力-閉(Gripping force:Close):11.48P/[1+0.015L]

單循環空氣消耗量(Air consumption per cycle):24.3cm

開閉時間(Closeing/0 pening time):0.01/0.01Sec

重復精度Repeat accuracy):+-0.05mm

連續使用次數(Continuation usage amount):60

使用氣壓(Operating pressure).:37P

潤滑(Lubr ication):不需要(Needless)

根據IEC60529標準安全防護：IP64(Safety protection in

accordance with IEC60529 standard IP64)
